Welded Impeller by Casting and welding fabrication



Product Name: Welded Impeller

Material: 1.4848 / AISI 310S

Dimensions: Ф750 × 135 mm

Unit Weight: 26 kg

Manufacturing Process: Casting and fabrication (welding)

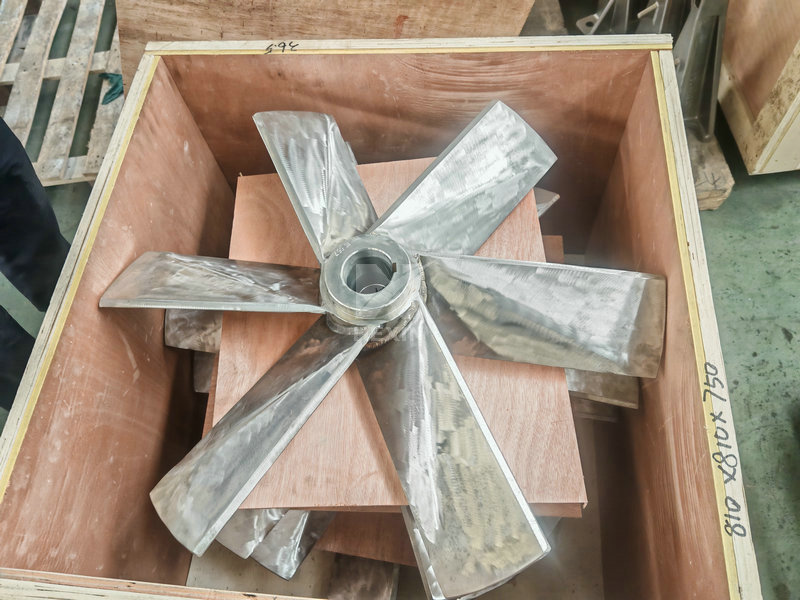

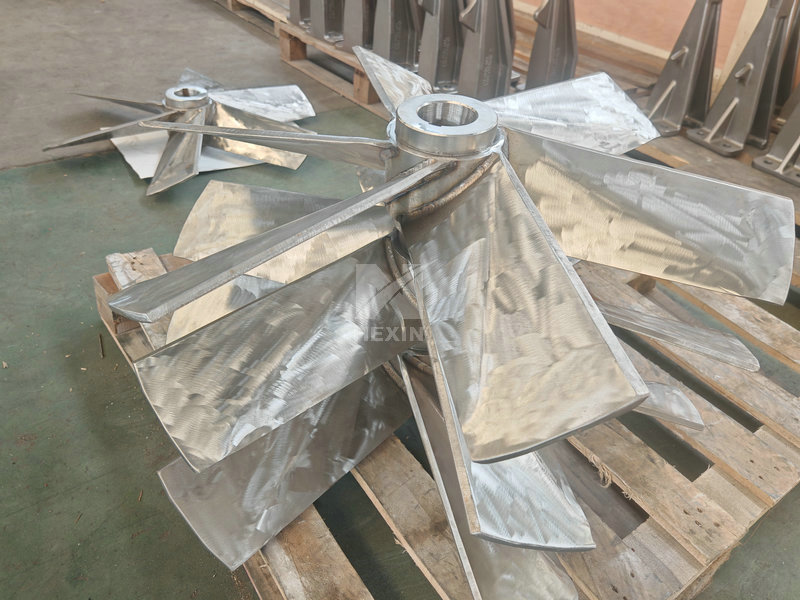

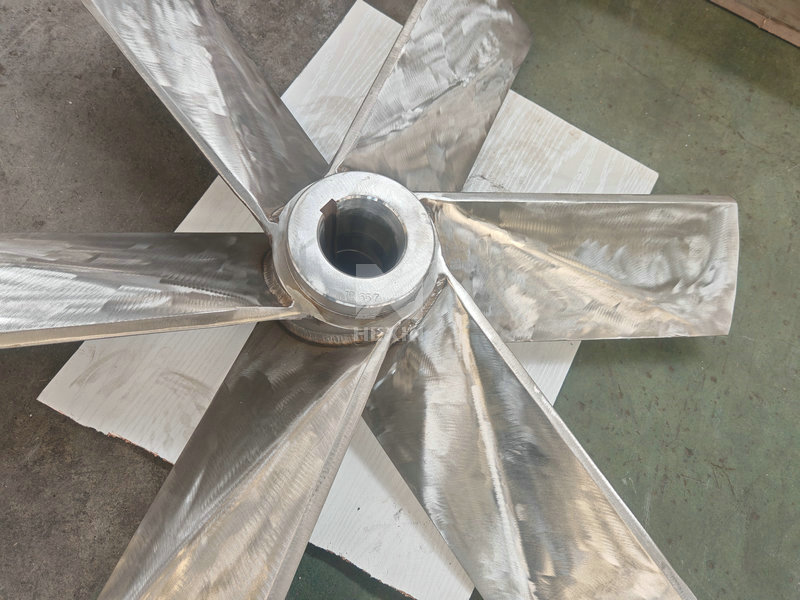

The image shows an impeller from a recently completed order. It measures Ф750 × 135 mm, weighs approximately 26 kg, and is made of 1.4848 / AISI 310S. The central hub is cast, while the blades are formed by bending sheet/plate material and then welded onto the hub; the assembly interfaces are precision-machined. The impellers are produced in both left-hand and right-hand rotation configurations. They have successfully passed all required inspections—including dynamic balancing—and have been crated and shipped.
