Pit Furnace Fixture



Product Name: Pit Furnace Fixture

Material: 1.4852/1.4841

Dimensions: Φ700*1490mm

Single Weight: 350kg

Manufacturing Process: Precision Casting

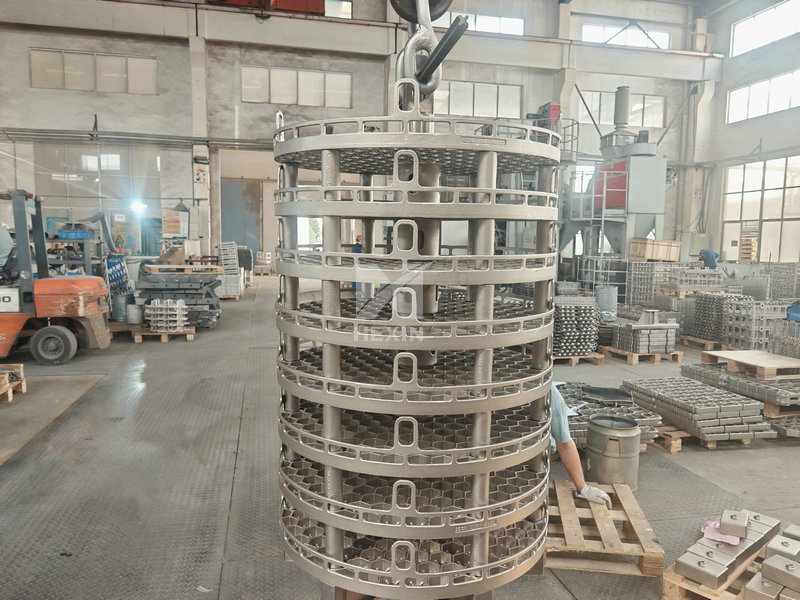

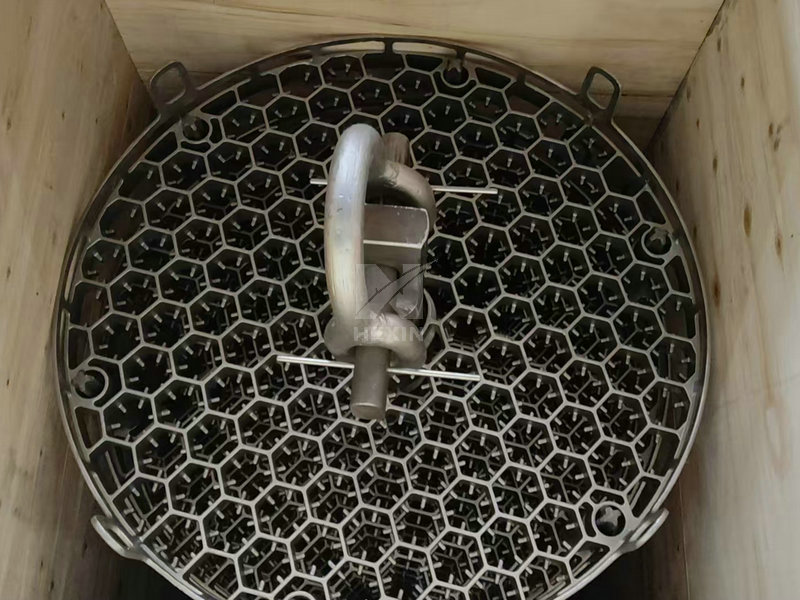

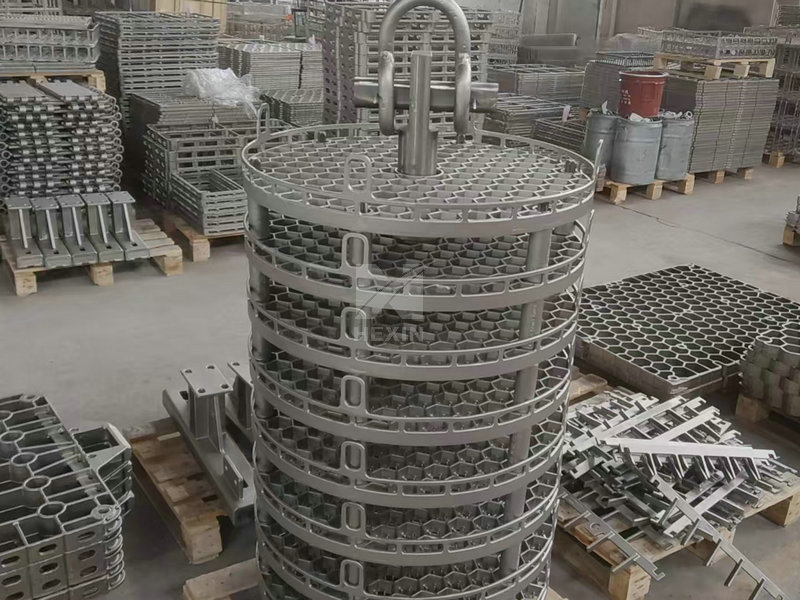

The image shows a recently completed pit furnace fixture, with a main dimension of Φ700*1490mm. The casting material is 1.4852, while the lifting rod is made of 1.4841 sheet metal. The castings are produced using silica sol precision casting technology. The pit furnace fixture includes components such as supports, intermediate grates, columns, and partition tubes. Precision casting of this fixture offers advantages such as dimensional accuracy, high temperature resistance, resistance to deformation, and direct installation. This batch of fixtures has passed quality inspection and has been packaged and shipped.
