Precision Casting Tray



Product Name: Cast Tray

Material: 1.4852

Dimensions: 900*600*45 mm

Single Weight: 46kg

Manufacturing Process: Precision Casting

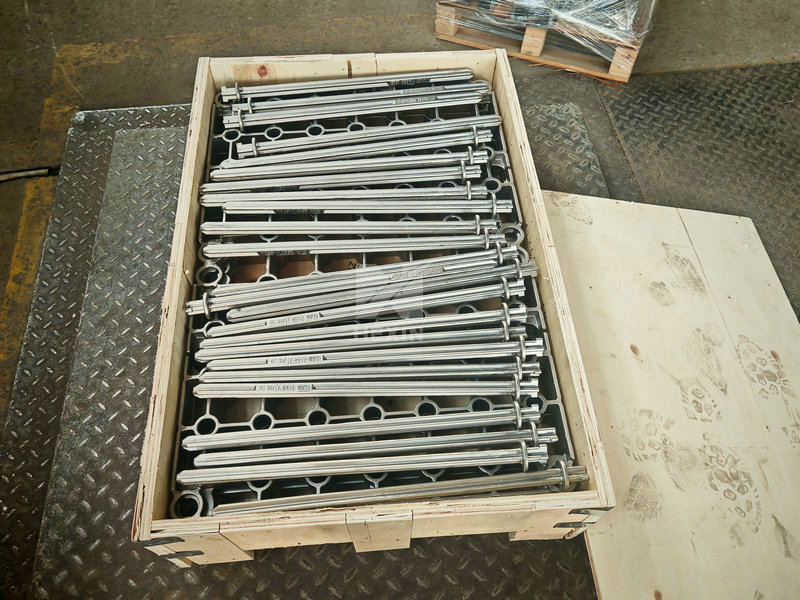

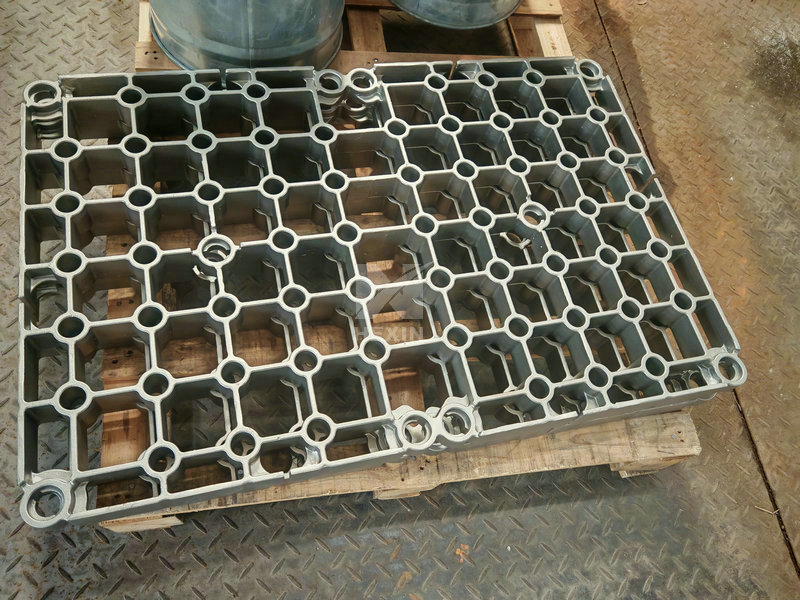

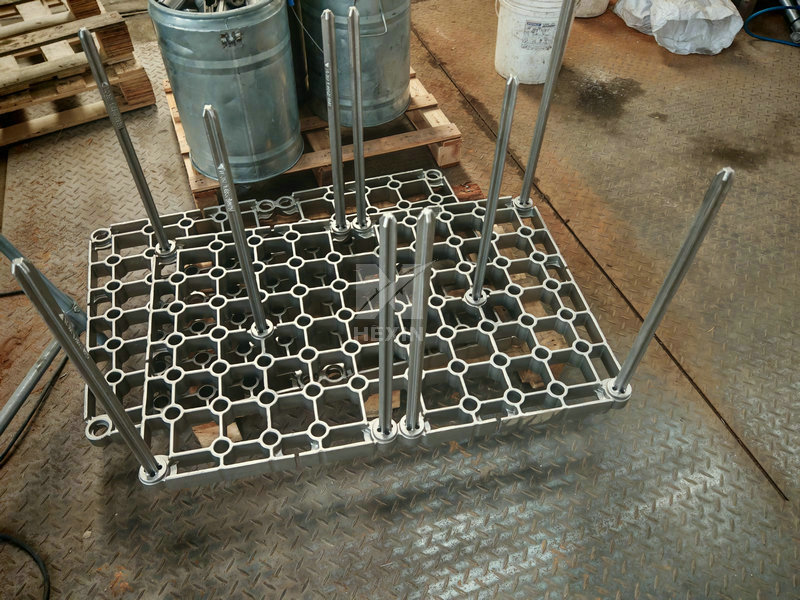

The image shows a recently completed heat treatment fixture, including a Cast Tray and Posts. The main dimensions are 900*600*45 mm. The number of stacking layers and the height of each layer depend on the number of workpieces being heat treated. Made of 1.4852 stainless steel using a silica sol precision casting process, this heat treatment fixture comprises Cast Trays, grates, Posts, and spacer tubes. Precision casting of this fixture offers advantages such as dimensional accuracy, high temperature resistance, resistance to deformation, and direct installation. This batch of heat treatment fixtures has passed quality inspection and has been packaged and shipped.
