Catalyst Tubes
Product Category:Ethylene Coils & Reformer Tube
Price:Negotiation

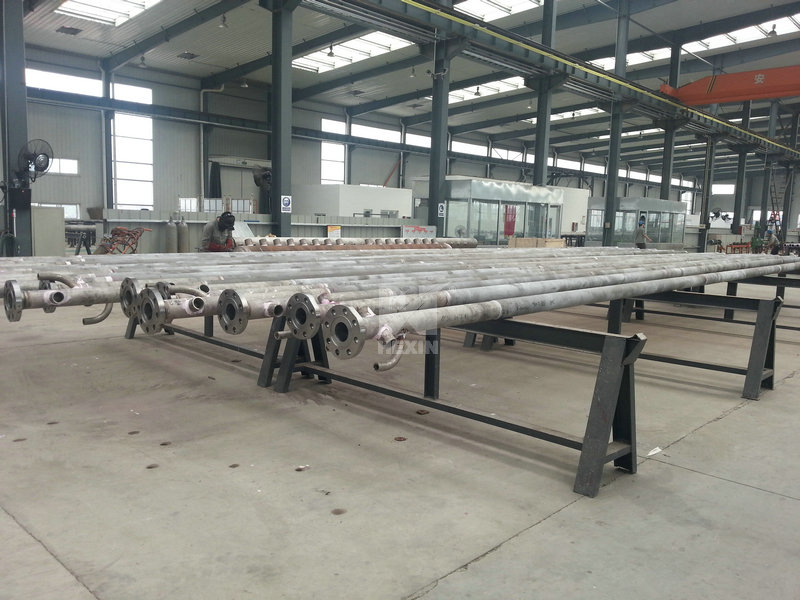

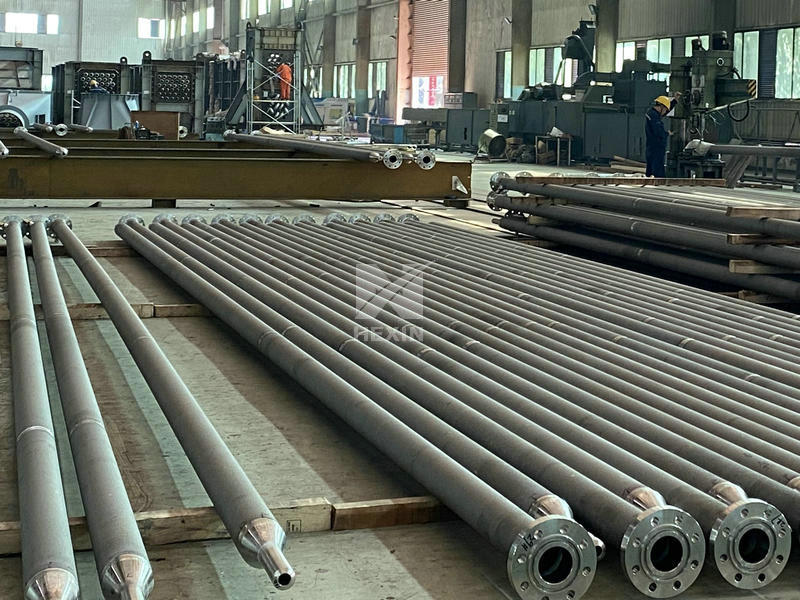

 Reformer tubes
Furnace tubes for hydrocarbon steam reforming hydrogen equipment , used in various types of hydrocarbon feedstock steam reforming hydrogen plant , widely used in oil refineries, chemical plant, metallurgical direct reduced iron (DRI )and other industries, and petrochemical industry has the largest demand for hydrogen . Global oil refineries, chemical plants provide more than 90% of hydrogen used the technology of hydrocarbon steam conversion method . Hydrocarbon steam reforming hydrogen plant , equipment including : an inlet manifold , reformer tubes , outlet manifold and pigtail tubes. The reformer tube use centrifugal casting process produce to produce, working temperature is 900 ℃ -1000 ℃, is the important equipment for hydrogen reformer furnace.
Material grades is in strict accordance with standard for customers in different countries, commonly used material grades :
ZG40Cr25Ni35Nb、ZG40Cr35Ni45Nb、HP-Nb、HT50、GX40NiCrSiNb35-26、GX40NiCrNb45-35、G-NiCr28W、SCH24XNb
General centrifugal casting products supply specifications:
Reformer tube: OD 100mm-300mm,wall thickness 8mm-20mm;
Hot wall manifold: OD 100mm-400mm,wall thickness 10mm-40mm;
