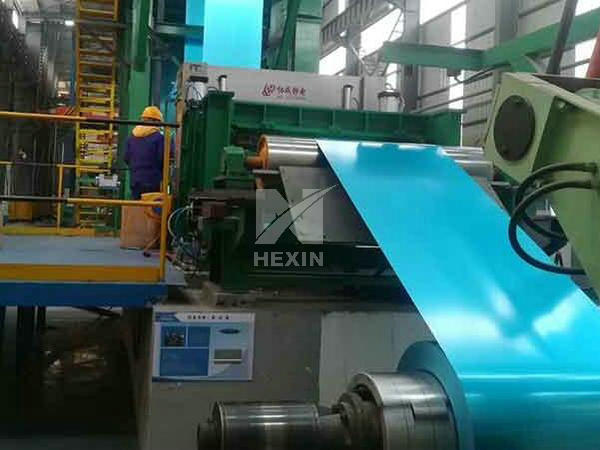

cold rolled continuous galvanizing line by Hexin



This line is the cold rolled continuous galvanizing line,with the function of heating reduction, galvanizing(reserve aluminum zinc silicon plating), skin pass, tension leveling.

The designed capacity is 220,000 tons per year,the line processing speed is Max.200m/min.

In the line processing section,it mainly completes the technologies process like heating,reduction,galvanizing,skin pass,tension leveling,passivation,oiling,ete.

Theproducts quality is accordance with GB/T2518-2008 standard.



Raw material status: cold rolledcoil

Steel species: low carbon SPCC,SPCD,ST12,08AL,Q215,Q235,Q345 etc.

Tensile strength: Max.800/mm²

Yield strength: Max.550N/mm²

Strip thickness: 0.2-1.2mm

Strip width: 550-900mm

Coil inner diameter: Φ508mm

Coil Out diameter: Φ1300-φ1900mm



Finshed Products

Products species: GI coil

Coating weight: 40-300g/m²(double side)



Technical Process

Coil loading→Decoiling→Head Cutting→Entry Looper→Degreasing→Heating Reduction→Galvanizing→AirCooling→Water Quenching Cooling→Dry→Skin Pass→Passivation→Dry→Exit Looper→Oiling→Cutting→Recoiling→Coil Unloading
