Casting superalloy is widely used in aviation engine, aerospace engine, gas turbine, ship, metallurgy, petroleum and glass industry for it's super anti-heat, anti-oxidation and anti-corrosion property.

HEXIN's directionally solidified alloy and single crystal alloy improve the components' operating temperature and thus prolonged the durability and reliability of the components enormously.

All kinds of alloy developed by HEXIN can match the property of the alloy developed and produced in the advanced countries or even better.

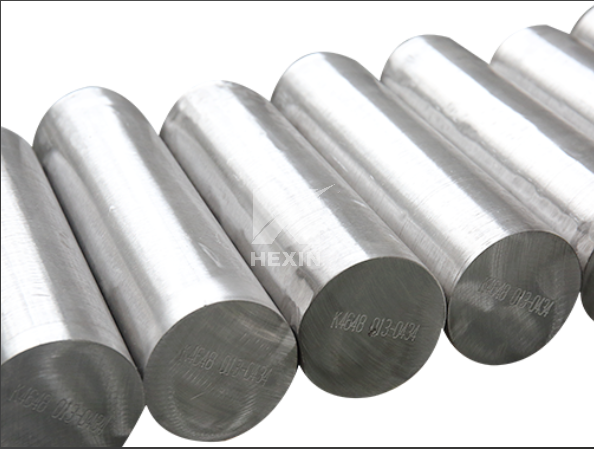

Typical nickel based master alloy ingots' grades like: K418(IN713),K4169,GH4099,K4648,K424,IN738,GH4169,GH3536,GH3625,M247,etc.,

Diameter: 250~8100mm , length: 120~700mm

Classification	Grade	Tensile Properties				Creep-rupture Properties		Range of Application
		Temp,   ℃	Yield Strength, Mpa	Tensile Strength, Mpa	Elongation,  %	Temp / Stress	Creep Rupture Life, h
For conventional equiaxed crystal casting	k417	900	640	745	10	900℃/200MPa	>1000	Suitable for up to 950°C. High alloy strength, good plasticity and low density.
	K418	900	455	670	9.5	900℃/127MPa	>6000	Suitable for up to 900°C. High creep strength and oxidation resistance.
	K465	900	695	790	10	900℃/209MPa	>2000	Suitable for up to 1050°C. High strength at high temperatures and corrosion resistance.
For directional solidification casting	DZ22	980	480	652	21	980℃/186MPa	>210	Suitable for up to 1050°C. Good medium and high temperature performance and resistance to cold and heat fatigue.
	DZ408 (CM247LC)	980	460	660	28	980℃/186MPa	>250	Suitable for up to 1050°C. Good creep resistance, fatigue resistance and high temperature bearing capacity.
For single crystal casting	CMSX-4	980	570	700	18	1100℃/137MPa	>100	Suitable for up to 1100°C. High strength at high temperatures, good overall performance, stable structure.
	Rene N5	980	615	857	23	1100°C/137MPa	>120	Suitable for up to 1100°C. High strength at high temperatures, good overall performance, stable structure.
	KZ4	980	623	752	26	1100°C/137MPa	>100	Suitable for up to 1100°C. Good overall performance, stable organization, low density and high cost performance.
For single crystal castingIII	KZ30	980	640	860	35	1100C/137MPa	>260	Suitable for up to 1150°C. Excellent high temperature performance, good structure stability.
