Wire Mesh Belt for Sintering Furnace
Product Category:Furnace Parts+
Price:Negotiation

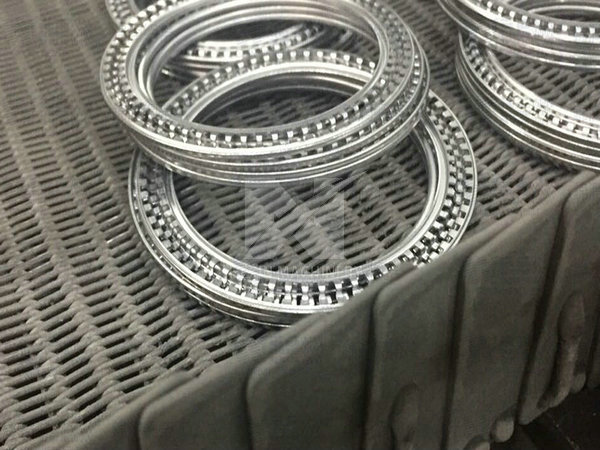

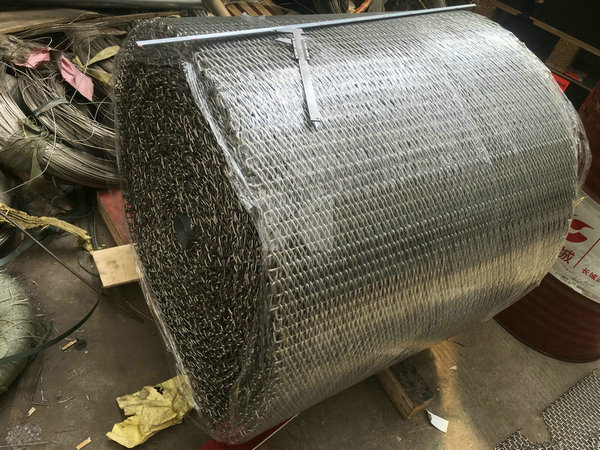

Powder metallurgy sintering furnace mesh belt, also known as sintered mesh belt, high temperature mesh belt, is made of imported SUS314 material from Japan's Nippon Steel Corporation, with a temperature resistance of more than 1200 degrees,
and is widely used in continuous sintering production lines.
It is mainly used for pressing and forming iron-based, copper-based and other related powder metallurgy products, under protective atmosphere conditions for ideal continuous sintering process.

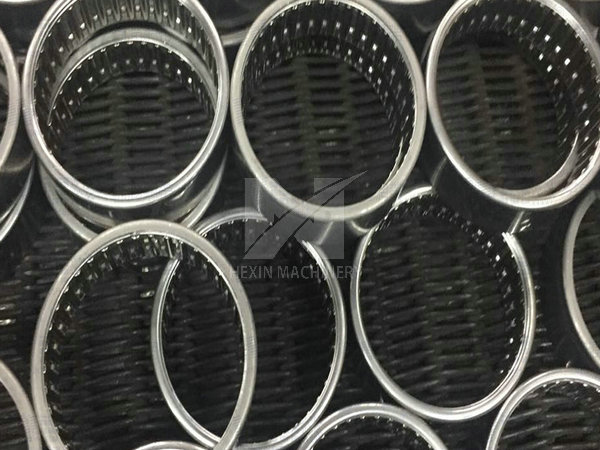

The mesh belt is heated and cooled under high temperature without oxidation, so that the powder metallurgy products can achieve the molding effect.
Typical uses, belt types and material
Uses Belt Type Materials
Sintering K2W A2W A4 RRW SUH330. AISI314. SUS310S
Brazing K2W A2W RR RRW A4 K2 SUH330. AISI314. SUS310S
Hardening K2W A2W A4 F2 K2 SUS310S
Heating K2 A4 NCHW1. SUS310S
Tempering K2W A2W A4 F2 K2 SUS304 (SUS410) (SUS430)
Lehr K2 k2W KF2 A4 SUS304. SUS410 (SUS430) (SWRM)

Components of typical material

Material
 Chemical Components Max.
Operating
Temp.
 C  Si  Mn  P  S  Ni  Cr  Other
SUH 330 ≤0.15 ≤0.50 ≤2.00 ≤0.040 ≤0.030 33.00-37.00 14.00-17.00   1150
AISI 314 ≤0.25 50-3.00 ≤2.00 ≤0.045 ≤0.030 19.00-22.00 23.00-26.00   1150
SUS 310S ≤0.08 ≤0.15 ≤2.00 ≤0.045 ≤0.030 19.00-22.00 24.00-26.00   1090
NCHW1 ≤0.15 0.75-1.6 ≤2.50 --- --  ≥77.00 19.00-21.00 Fe≤1.0 1150
SUS 304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.00-10.50 18.00-20.00   870
SUS 410 ≤0.15 ≤1.00 ≤1.00 ≤0.030 ≤0.030 -- 11.50-13.50   700
SUS 430 ≤0.12 ≤0.75 ≤1.00 ≤0.030 ≤0.030 -- 16.00-18.00   700
DIN 1.4841 ≤0.2 1.5-2.5 ≤2.00 ≤0.030 ≤0.030 19.0-21.00 24.0-26.0   1150


HEXIN Machinery produces various OEM wear and corrosion resistant components for the cement, lime, coal, shot blast machines,and iron Ore industries.
The castings HEXIN made generally are made from special irons and manganese steels, which are critically used in the sectiors of cement manufacturing,coal mining (surface and underground), copper smelting,crushers direct reduction of iron (DRI)
Iron ore manufacturing,Lime manufacturing. All the castings manufactured at HEXIN go through strict quality checks at all stages before being supplied to customers.

Typical Mining & Mineral castings:
Ø Cooler grate plates
Ø Drag chain links
Ø Kiln outlets sector
Ø Immersion tubes for Pre heater
Ø Dipping tube assemblies
Ø Thimbles
Ø Air cannons
Ø Grate plates
Ø Drag chains
Ø Pelletizing grates
Ø Feed chutes
Ø Rotary cooler castings
Ø Burner tips
Ø Liners
Ø Brackets,
Ø Cooler grates
Ø Grate bars
Ø Iron ore feeder rolls
Ø Kiln nose rings
Ø Pallet cars
Ø Precipitator thimbles
Ø Traveling grate components
