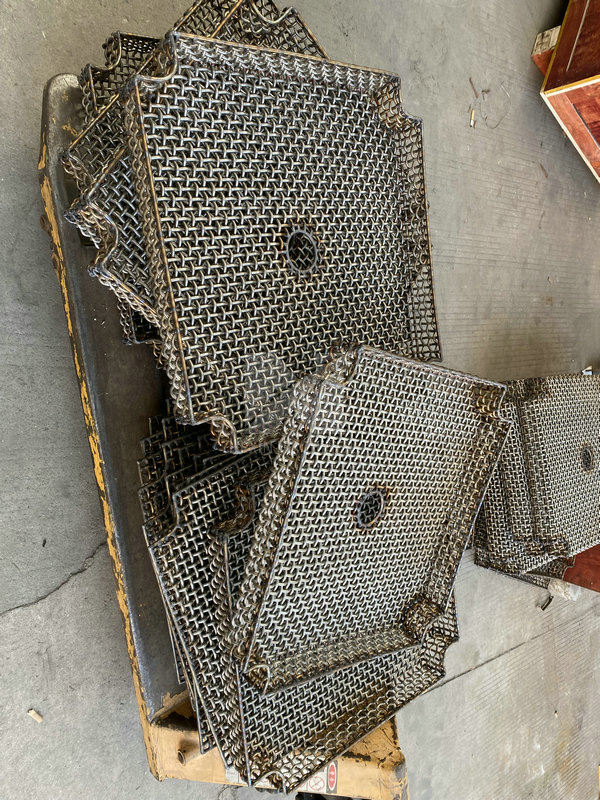

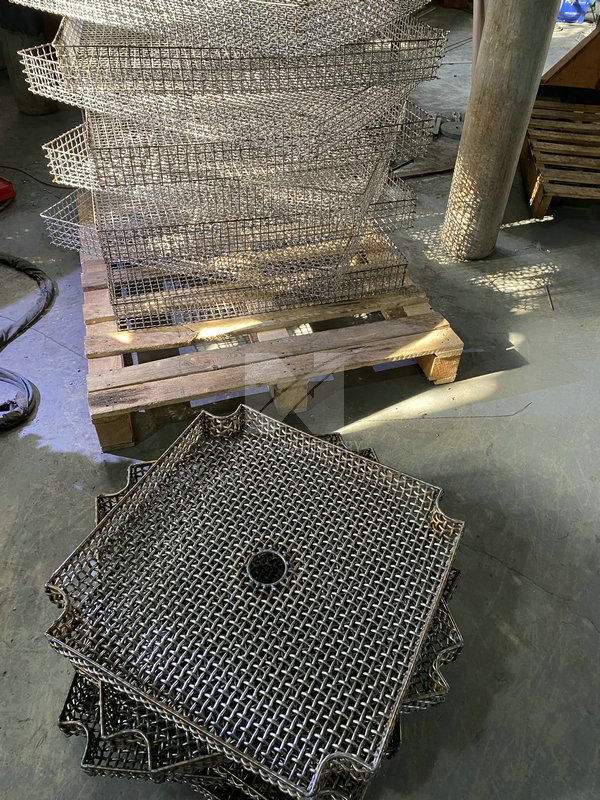

Woven Alloy Wire Mesh Basket Liners
Product Category:Furnace Parts+
Price:Negotiation


Qingdao Hexin Machinery Co., Ltd. can weave various specifications of Woven Alloy Wire Mesh Basket Liners, high temperature resistant stainless steel mesh frame, material 310, 304, 321
According to the needs of users, we can weave various specifications of heat treatment mesh frames, mesh sheets, and charging frames. The materials are: 304, 309, 310s, 314, etc.
The diameter of the steel wire is 1mm, 2mm, 3mm, 4mm, etc. The main spacings are: 2*2mm, 5*5mm, 10*10mm, 20*20mm,
Welcome to inquire. It can be used in carburizing furnace, multi-purpose furnace, continuous furnace, vacuum furnace and other furnace types. High temperature resistance, long service life and other characteristics.



Components of typical material

Material
 Chemical Components Max.
Operating
Temp.
 C  Si  Mn  P  S  Ni  Cr  Other
SUH 330 ≤0.15 ≤0.50 ≤2.00 ≤0.040 ≤0.030 33.00-37.00 14.00-17.00   1150
AISI 314 ≤0.25 50-3.00 ≤2.00 ≤0.045 ≤0.030 19.00-22.00 23.00-26.00   1150
SUS 310S ≤0.08 ≤0.15 ≤2.00 ≤0.045 ≤0.030 19.00-22.00 24.00-26.00   1090
NCHW1 ≤0.15 0.75-1.6 ≤2.50 --- --  ≥77.00 19.00-21.00 Fe≤1.0 1150
SUS 304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.00-10.50 18.00-20.00   870
SUS 410 ≤0.15 ≤1.00 ≤1.00 ≤0.030 ≤0.030 -- 11.50-13.50   700
SUS 430 ≤0.12 ≤0.75 ≤1.00 ≤0.030 ≤0.030 -- 16.00-18.00   700
DIN 1.4841 ≤0.2 1.5-2.5 ≤2.00 ≤0.030 ≤0.030 19.0-21.00 24.0-26.0   1150

HEXIN Machinery produces various OEM wear and corrosion resistant components for the cement, lime, coal, shot blast machines,and iron Ore industries.
The castings HEXIN made generally are made from special irons and manganese steels, which are critically used in the sectiors of cement manufacturing,coal mining (surface and underground), copper smelting,crushers direct reduction of iron (DRI)
Iron ore manufacturing,Lime manufacturing. All the castings manufactured at HEXIN go through strict quality checks at all stages before being supplied to customers.

Typical Mining & Mineral castings:
Ø Cooler grate plates
Ø Drag chain links
Ø Kiln outlets sector
Ø Immersion tubes for Pre heater
Ø Dipping tube assemblies
Ø Thimbles
Ø Air cannons
Ø Grate plates
Ø Drag chains
Ø Pelletizing grates
Ø Feed chutes
Ø Rotary cooler castings
Ø Burner tips
Ø Liners
Ø Brackets,
Ø Cooler grates
Ø Grate bars
Ø Iron ore feeder rolls
Ø Kiln nose rings
Ø Pallet cars
Ø Precipitator thimbles
Ø Traveling grate components
