Tube sheet and Pipe bracket



Product name: Tube sheet

Material: A560-50CR-50NI-CB

                A297 Gr. HK - 25Cr-20Ni

Size: 2300*665*148

          2300*492*180

          2300*779*148

Product name: Pipe bracket

Material: A560-50CR-50NI-CB

                 A297 Gr. HK - 25Cr-20Ni

Size: 260*182*150

         280*212*150

         210*182*150

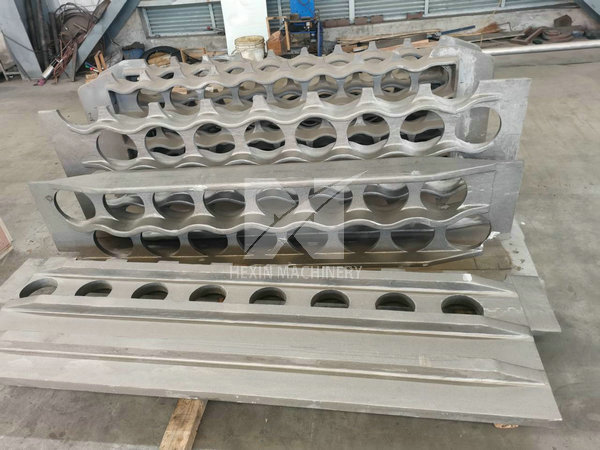

The picture shows the tube sheet and supporting tube bracket produced this month. The material dimensions are as described above. The tube plate is cast by sand mold, and the tube bracket is produced by precision casting process. Key parts are subject to RT inspection, PT, material, size, mechanical properties and other inspections. After passing the test, it will be packed and shipped.
