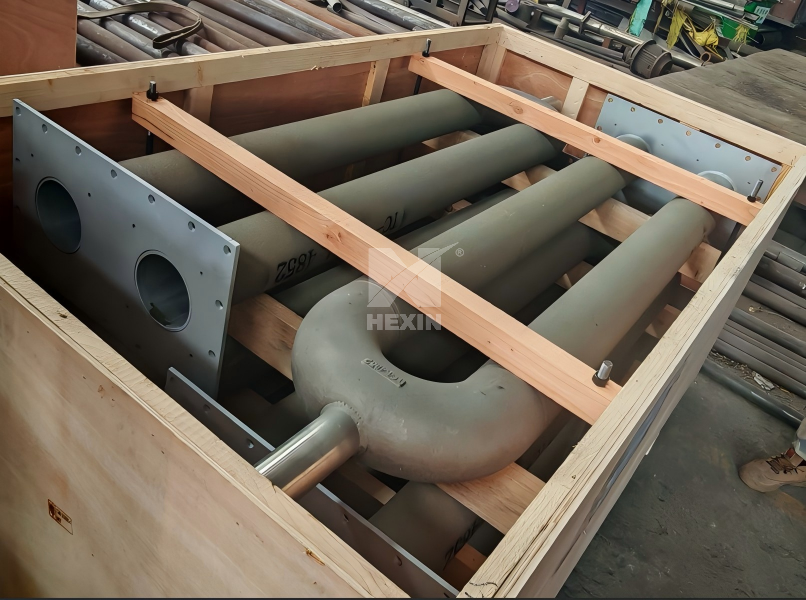

Briefly Describing the Features of U-Shaped Centrifugally Cast Radiant Tubes

In the industrial heat treatment industry, U-shaped radiant tubes are the core heating elements of many high-temperature furnaces. Their exceptional performance stems not only from their ingenious U-shaped design but also from a key manufacturing process: centrifugal casting. This process fundamentally defines the product's superior properties.

U-shaped radiant tubes produced using centrifugal casting exhibit the following outstanding characteristics:

1. Excellent high-temperature and creep resistance: Centrifugal casting allows the use of higher-grade heat-resistant alloys (such as HP, HK series, or specialized nickel-based alloys). These materials maintain exceptional strength even at high temperatures, resisting deformation and elongation (creep) caused by their own weight, resulting in a lifespan far exceeding that of ordinary steel pipes.

2. No duplex defects, doubling the lifespan: Conventional welded pipes have a weak link, the weld seam, which can easily become a starting point for cracking under high temperatures and stress. Centrifugally cast pipes, on the other hand, feature a seamless, one-piece structure, eliminating potential weld defects. This results in uniform pipe performance and exceptional resistance to thermal fatigue, enabling them to withstand frequent rapid cooling and heating cycles.

3. Excellent carburization and corrosion resistance: Centrifugally cast metal structures are dense and flawless, with minimal defects such as pores and pinholes. This effectively prevents the carburizing atmosphere and corrosive substances from penetrating the tube wall, slowing the aging and embrittlement of the material, significantly extending its service life under harsh operating conditions.

4. Higher design temperature and power: Thanks to their heat-resistant material properties and structural integrity, centrifugally cast U-shaped radiant tubes can withstand higher operating temperatures (up to 1100°C), meeting more demanding process heating requirements.
