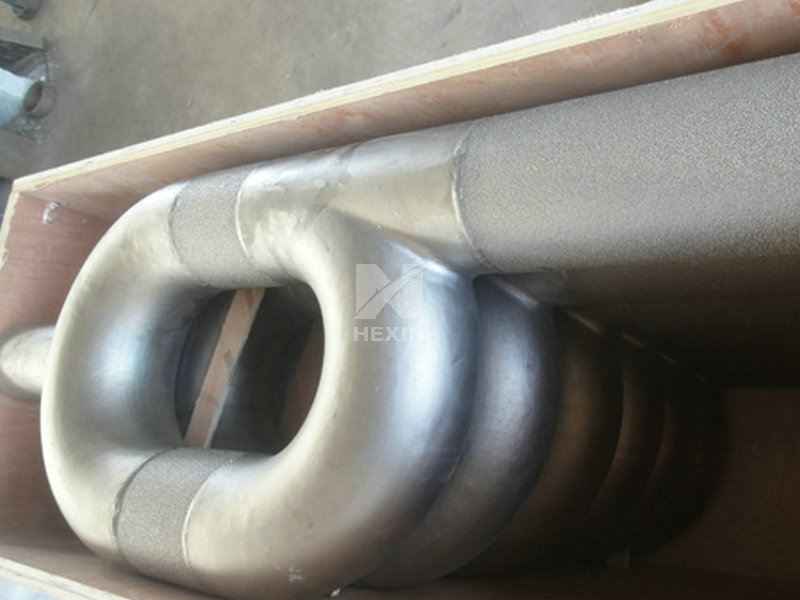

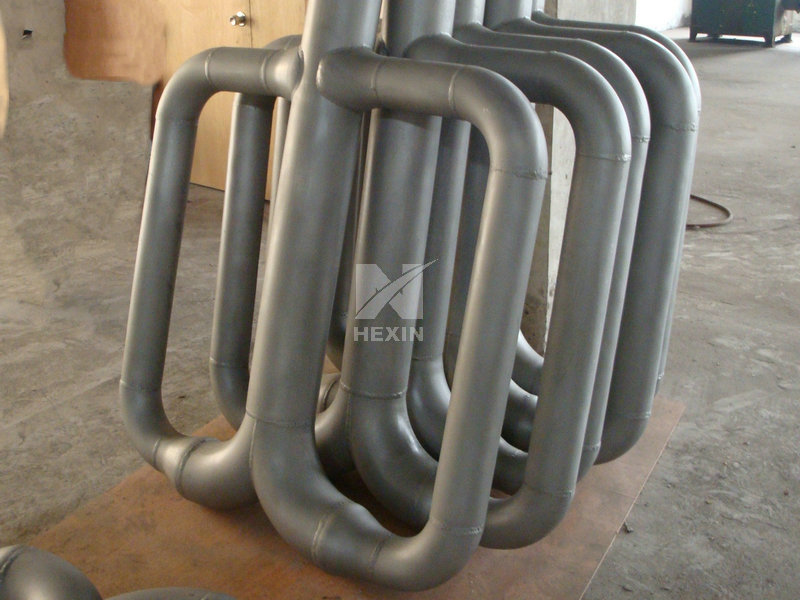

| Item | Double P Type Radiant Tubes by hexin |
| Process | Centrifugal/spun casting method for tube sections, investment casting for the elbows or bends ,hangers, welding and machining. |
| Shapes | U-type, W-Type, 0-Type, P-type, L-Type,S-Type, Straight-type, Electric radiant tubes. |
| Material | ZG40Cr25Ni20Si2,ZG40Ni35Cr25Nb,ZG45Ni48Cr28W5Si2,1.4848,1.4852,2.4879 or as per customer's requirements. |
| Application |
The radiant tubes are working at high temperature environment on average: 800-1200ºC, most of them are used for indirect heating to furnace like CAL(continuous annealing line) CGL,(Conginious galvanizing line). |
| Specifications |
Outer diameter: 60-2400mm Thickness: 5mm,6mm,7mm or customized Length: as per your request |
| Test | Chemical analysis by spectrometer for each heat,eddy current test,pressure test ,thickness test , PT 100%(liquid penetrant test),VI(visual inspect)100%,dimensional check. |
| Products |
U radiant tubes W radiant tubes Straight radiant tubes Electricity radiant tubes Special radiant tubes |
Radiant Tubes and Recuperators
